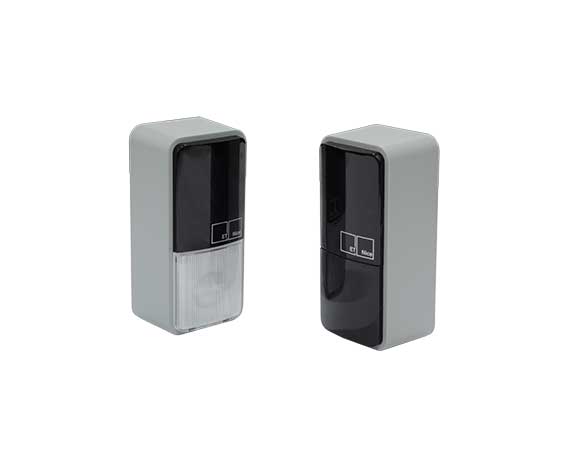

Nice - Wave Wireless Safety Beams
FEATURES
Standard Mode - Operating Distance: 6mStandard Mode - Expected Battery Life: 3 yearsBoost Mode - Operating Distance: 12mBoost Mode - Expected Battery Life: 1 yearReceiver Power Supply: 10-30 VAC/DCTransmitter Power Supply: 1 x 3V DC CR123A Battery (Supplied)Receiver Power Consumption: 28mA (@ 12VDC)Selectable Transmission Channels: 2Courtesy Light Module: Standard – LEDOutput Contact: N/C and N/O, Potential Free Contact; “dead man fallout ”Output Contact Rating: 2A @ 30V DC Non InductiveAlignment Area: 1m²@ 10mParallel Mounting Surfaces not requiredMechanical Tilt Function - Adjustable up to 32 DegreesOperating Temperature: -10°C / +50°CIngress Protection: IP 44Dimensions: 105mm x 50mm x 40mm
